Fan Curve and Plenum

First-pass trade studies determining the cold plate temperatures from water or glycol cooling with parallel or serpentine circular tubing. Intended for preliminary sizing and sensitivity analysis; validate independently for safety-critical use.

Details (inputs, outputs, assumptions) Read once

Model summary

Inputs: Plate size and material, coolant type, flow rate, tube sizing range..

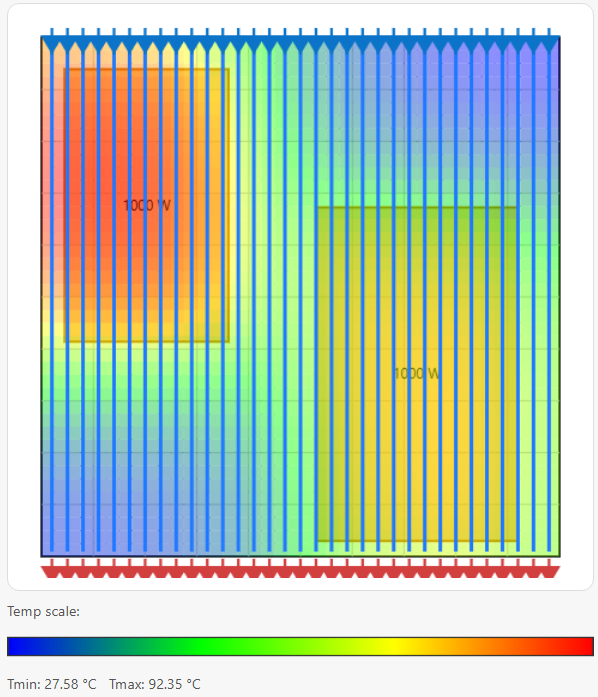

Outputs: Plate temperature contours, parametrics across the tube size range.

Fan Curve: the fan curve operating point i determined.

Use case: quick what-ifs, sensitivity, and early sizing—not detailed CFD/FEA.

Examples

Example of a finned heat sink in a plenum with a fan.

Preliminary estimates only. Verify independently for safety-critical applications. See Terms.
