These modules calculate the shock loads from a weight dropped from a user given height.

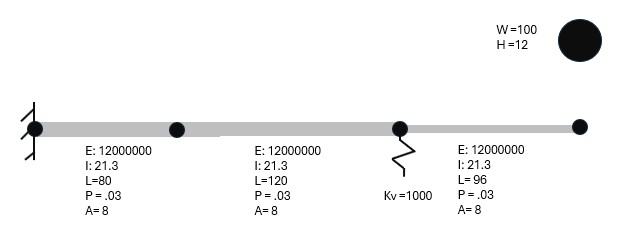

dropped weight on beam


This is ths same module listed on the Beam page.



Clickable image

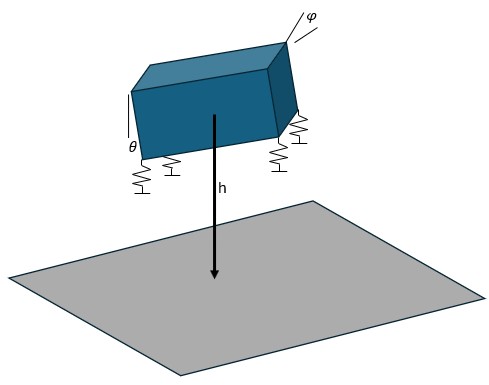

3D Drop Shock


This module will determine the shock response to a dropped 3D box with a spring and viscous damper at each corner. The box can be dropped from a specified height and angled about the x and z axes resulting in a corner drop.



Clickable image


excel Drop Shock


This calculator will determine the 1D shock response to a dropped weight onto a spring and viscous damper.



Clickable image
