Axial Buckling

Browser-based tools for Euler and nonlinear buckling loads for axially loaded members. Intended for early-stage feasibility and parameter sensitivity studies.

Back to directory
Tip: Use these modules for preliminary sizing and parametric comparisons. For final designs, validate with detailed analysis and test. Documentation PDFs describe the solution methodology, assumptions and references.
Axial Buckling
Euler Buckling

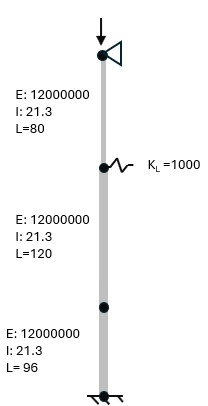

Euler buckling load for an axially loaded member with varying section properties and nodal boundary conditions.
Define the number of segments and their respective section properties
Define the nodal boundary conditions
Click on a segment or node to change their parameters
Outputs include the Euler buckling load. These loads are typically upper bound loads and should be treated as such
Open module Documentation (PDF)
Axial Buckling
Non-linear Buckling

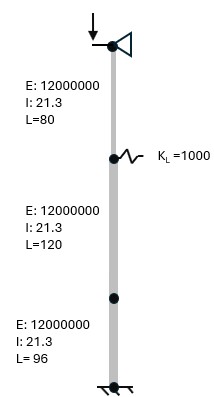

Nonlinear buckling load for an axially member with varying section properties and nodal boundary conditions
Define the number of segments and their respective section properties
Define the nodal boundary conditions
Click on a segment or node to change their parameters
Outputs include the calculated buckling load with the assumed initial conditions. The corresponding Euler buckibg load is given as a reference. The buckled shape is load stepped animated.
Open module Documentation (PDF)
Quick selection
Which module should I use?
Euler Buckling Load : Idealized buckling load.
Nonlinear Buckling Load : Predicts the nonlinear buckling load for the assumed initial conditions.
Not sure: The nonlinear option gives both the idealized Euler load and the predicted nonlinear load
For safety-critical decisions, validate results independently (detailed analysis, test, or professional review).
Notes
Scope and common checks
Confirm assumptions, segment properties and nodal boundary conditions
Check sensitivity to those parameters
Use conservative margins when translating to hardware
Methods, limitations, and responsibility Read once

These modules implement physics-based, low-order models for rapid engineering insight. They prioritize speed and transparency over high-fidelity FEA simulations. Assumptions, boundary conditions, and correlations used are documented in the PDFs and within the modules. Users are responsible for verifying applicability and results for their specific use case.
