2D Frame

This module will solve a 2D Frame structure. All nodes can transfer moments. The member axial and bending forces will be calculated.

Details (inputs, outputs, assumptions) Read once

Model summary

Inputs: The interactive panel can be used to draw the frame members with their segment properties and loads defined for each.

Inputs: The nodal loads and boundary conditions can be given for each node.

Inputs: The nodes and segments are editable for easy changes, including nodal positions.

Outputs: A static or normal modes solution can be used. The results can be animated.

Outputs: Members can be clicked on for their specific stresses.

Helpful hint: A configuration can be saved to a JSON file for reuse.

Use case: quick what-ifs, sensitivity, and early sizing.

Examples

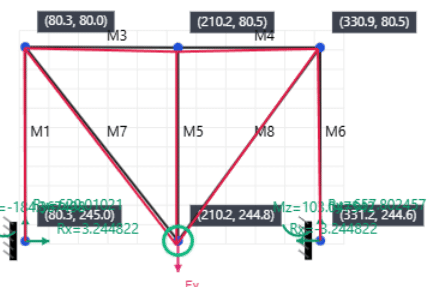

Example of a Frame structure.
